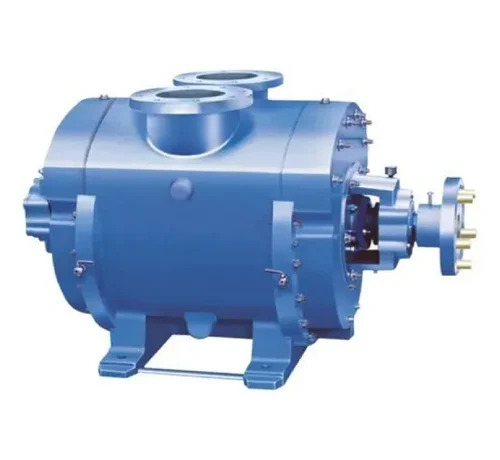

Single Stage Watering Vacuum Pump

A Single Stage Watering Vacuum Pump is a type of vacuum pump that uses a water ring as both the working and sealing fluid. It creates a water ring inside the pump chamber, which acts as a piston to remove and compress gas molecules, hence resulting in a vacuum. This pump is used in applications that require moderate vacuum levels. Single Stage Watering Vacuum Pump offers reliable performance, user- friendly operation, and is suitable for different industries like pharmaceutical manufacturing, chemical processing, and environmental applications. The water ring design provides efficient cooling and eliminates the need for lubrication, making it a feasible and low maintenance option. This pump is known for its versatility, durability, and ability to handle various gases.

• Water Ring Design
• Single-Stage Operation
• Moderate Vacuum Levels
• Versatility
• Simple Operation
• Water Cooling
• Low Maintenance
• Cost-Effective
• Robust Construction
• Environmental Friendliness

• It is known for its user- friendly design and operations.
• It requires minimal setup and can be started quickly.
• It provides efficient cooling for the pump for ensuring optimal operating temperatures and preventing overheating.
• It can withstand demanding industrial environments, ensuring long term reliability and consistent performance.

A: A single stage watering vacuum pump is a type of vacuum pump that uses a water ring as both the sealing and working fluid. It helps in creating a vacuum by compressing and removing gas molecules from a sealed chamber.

A: The pump works by rotating an impeller or rotor inside the pump chamber, and creating a water ring. As the impeller rotates, the water ring forms a seal and compresses gas molecules, which results in the removal of gases and the creation of a vacuum.

A: Some advantages of using a single-stage watering vacuum pump include:

• Simple operation and maintenance
• Versatility in handling different gases and vapors
• Efficient cooling provided by the water ring
• Lower maintenance requirements compared to other types of vacuum pumps
• Cost-effectiveness

A: Single-stage watering vacuum pumps find application in different industries and applications, such as:

• Vacuum distillation and evaporation
• Filtration processes
• Drying operations
• Vacuum packaging in the food industry
• Laboratory research and analysis

A: Water is generally used as the working fluid in single-stage watering vacuum pump, other liquids with appropriate properties can be used, including solvents or oils.

A: Maintenance for a single-stage watering vacuum pump includes tasks such as checking and maintaining the water supply, cleaning the pump chamber, inspecting and replacing seals, and monitoring operating parameters.

A: Safety considerations include ensuring proper water supply and water quality, following electrical safety guidelines, and complying to the manufacturer's instructions for safe operation.

Other details:

Type MIWR	Motor H.P.Vacuum Pumps	Pump Speed R.P.M	Suction Capacity		Water Consumption Ltr/min
			C.F.M	m3/hr.
LM-W15	1	2800	15	25	4
LM-W20	2	2800	23	37	6
LM-W30	3	2800	30	51	7
LM-W50	5	2800	50	85	10
LM-W75	7.5	2800	75	128	14
LM-W100	7.5	1500	100	170	16
LM-W130	10	1500	130	220	20
LM-W200	15	1500	200	340	30
LM-W300	20	1500	300	510	40
LM-W430	30	980	430	725	60
LM-W500	35	980	500	850	80
LM-W650	40	980	650	1105	85
